TAKE CONTROL OF THE SUN!
SMART AUTOMATION OF ALL
TYPES OF CURTAINS
SMART AUTOMATION OF ALL
TYPES OF CURTAINS
WIFI
ZIGBEE
- Alexa/Google Home voice control
- Free TUYA application for Android or IOS
- Wall-mounted and portable remote control
- Dry contact control
- Flexible length adjustment
- Single-slid or double-slid opening
Voice control
App control
Opening by timer
Remote control
Manual control
PRODUCT DETAILS
| Rated torque: | 1,2Nm |
| Rated power: | 40W |
| Remote control range: | <50m |
| Warranty: | 3 years |
| Power input: | 110-240V AC |
| Maximum load: | 50kg |
| Waterproof: | Ip20 |
LENGTH OPTIONS
| Total length | 2,2m | 3,2m | 4,2m | 5,2m | 6,2m | 7,2m | 8,2m |
|---|---|---|---|---|---|---|---|
| Suitable length | <2,16m | 2,16 – 3,16m | 3,16 – 4,16m | 4,16 – 5,16m | 5,16 – 6,16m | 6,16 – 7,16m | 7,16 – 8,16m |

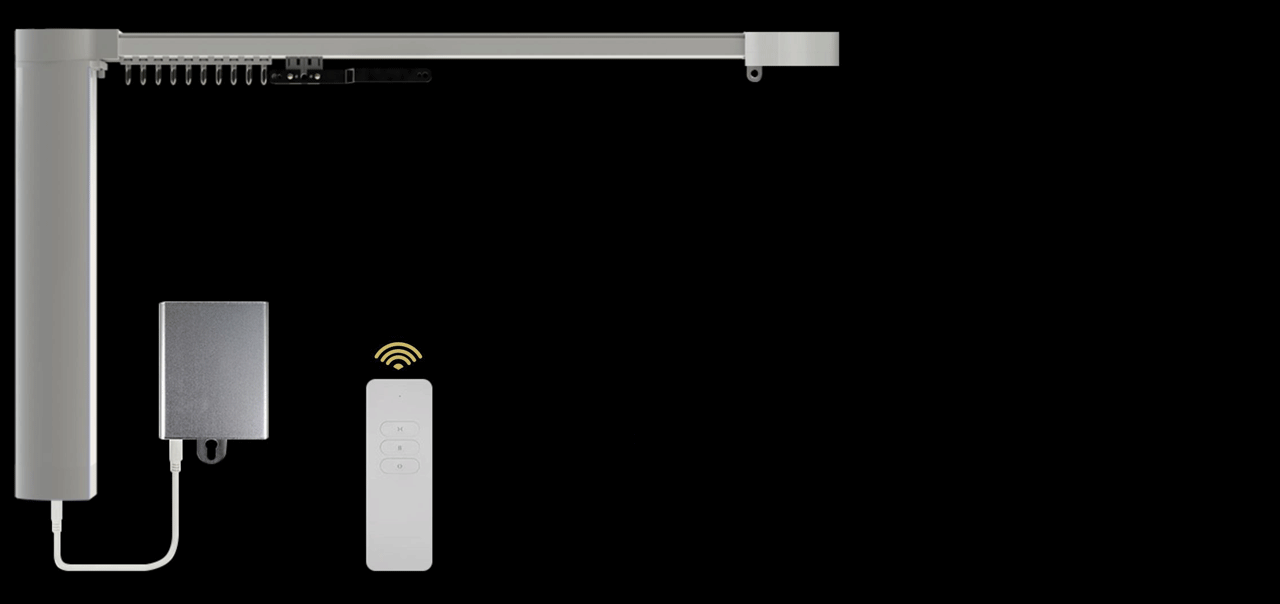

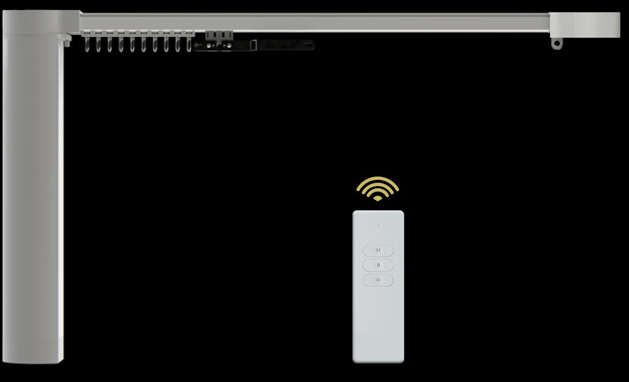

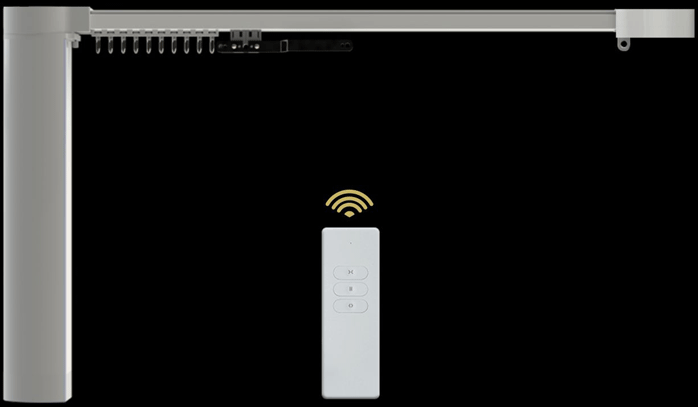

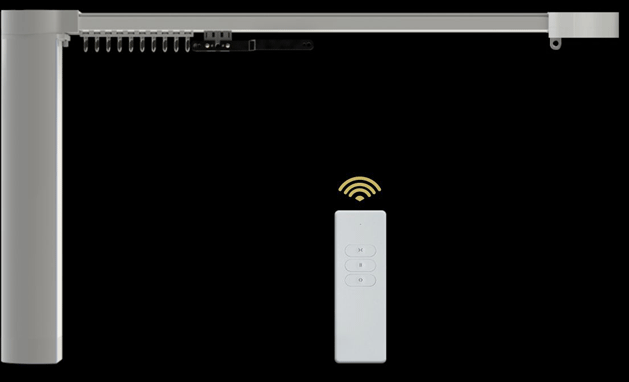

SB10103
WiFi/Zigbee curtains rod
WiFi/Zigbee curtains rod
WIFI
SB10103W
- Voice control
- Opening by timer
- App control
- Remote control
ZIGBEE
SB10103Z
- Dry contact control
- Flexible length adjustment
- Single-slid or double-slid opening
- Alexa/Google Home voice control
- Free installation of the TUYA application on an Android or IOS
- Wall-mounted or portable remote control
PRODUCT DETAILS
| Rated torque: | 1,2Nm |
| Rated power: | 88W |
| Remote control range: | <50m |
| Warranty: | 3 years |
| Rotation speed: | 110rpm |
| Power input: | AC 110-240V 50/60Hz |
| Maximum load: | 50kg |
| Waterproof: | Ip20 |
LENGTH OPTIONS
| Total length | 2,2m | 3,2m | 4,2m | 5,2m | 6,2m | 7,2m | 8,2m |
|---|---|---|---|---|---|---|---|
| Suitable length | <2,16m | 2,16 – 3,16m | 3,16 – 4,16m | 4,16 – 5,16m | 5,16 – 6,16m | 6,16 – 7,16m | 7,16 – 8,16m |

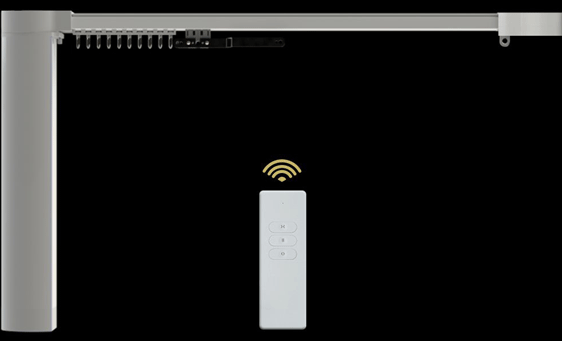

SB10104
Zigbee curtain rod
Zigbee curtain rod
ZIGBEE
- Powered by a rechargeable battery
- Alexa/Google Home voice control
Voice control
App control
Opening by timer
Remote control
Manual control
BUILT-IN BATTERY ⌀15
Motor for ⌀17mm tube
Motor for ⌀25mm tube
WIFI
ZIGBEE
- Free installation of the TUYA application on an Android or IOS
- Alexa/Google Home voice control
- Can be set upper/middle/lower limits
Voice control
App control
Opening by timer
Remote control
PRODUCT DETAILS
| Rated torque: | 0,3Nm |
| Rated power: | 2,5W |
| Motor diameter: | 15mm |
| Power input: | DC 5V 0,5A |
| Waterproof: | Ip20 |
| Operating temperature: | -20℃ – 55℃ |
| Cable length: | 15cm |
| Warranty: | 3 years |

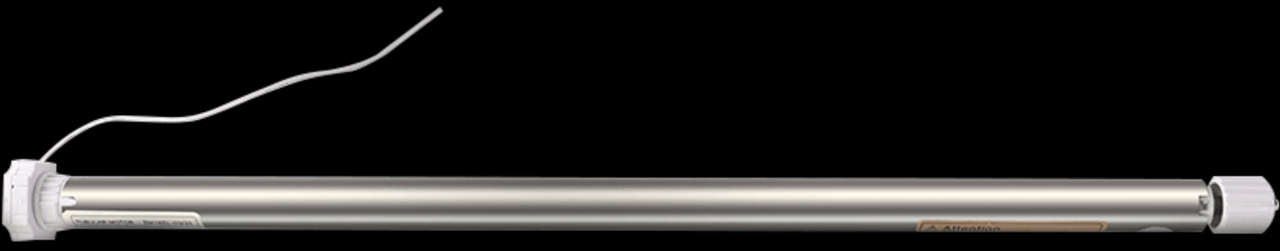

SB10107
Smart roller blinds
Smart roller blinds
⌀25 MOTOR FOR 36-38MM TUBE
ALL SETTINGS IN THE APP
Easy and convenient
Easy and convenient
WIFI
ZIGBEE
- Free installation of the TUYA application on an Android or IOS
- Alexa/Google Home voice control
- Can be set upper/middle/lower limits
Voice control
App control
Opening by timer
Remote control
PRODUCT DETAILS
| Rated torque: | 0,8Nm |
| Rated power: | 9W |
| Motor diameter: | 25mm |
| Power input: | AC 110-240V 50/60Hz |
| Waterproof: | Ip20 |
| Operating temperature: | -20℃ – 55℃ |
| Maximum load (⌀38mm pipe): | 4kg |
| Warranty: | 3 years |

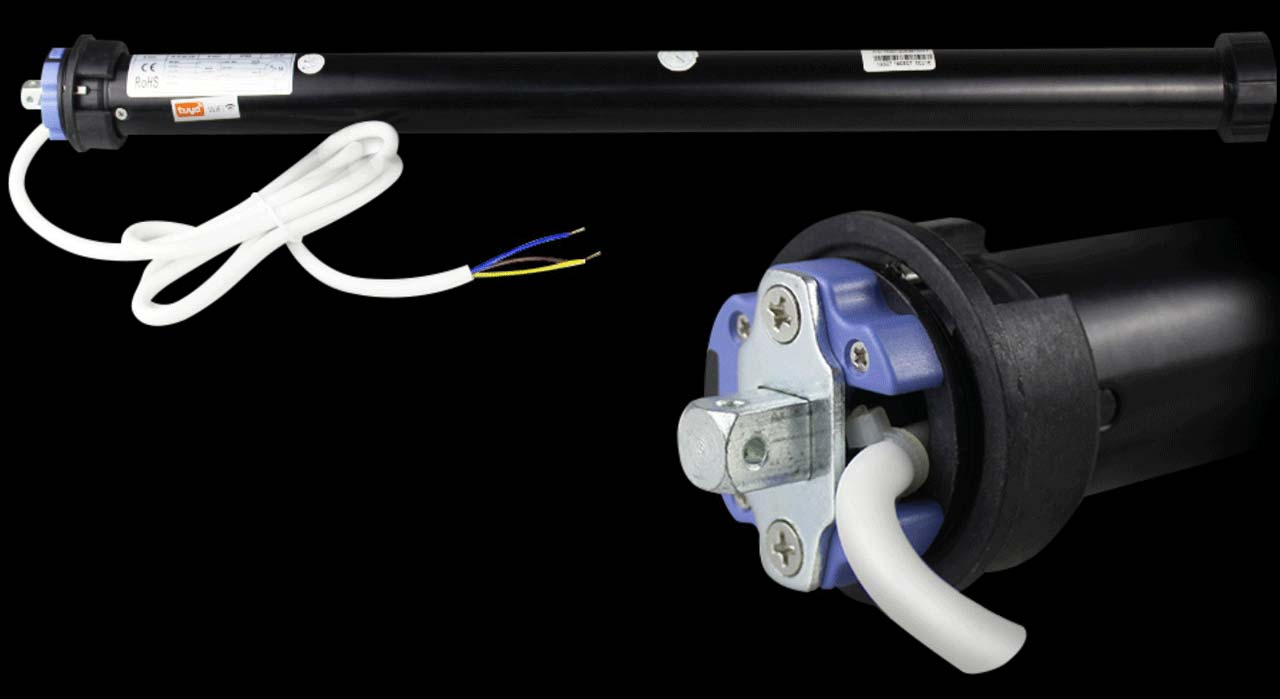

SB10108
Smart roller blinds
Smart roller blinds
⌀25 BUILT-IN BATTERY
Motor for ⌀38mm pipe
ZIGBEE
- Voice control
- App control
- Opening by timer
- Remote control
- Solar battery
- Battery operated motor
- Free installation of the TUYA application on an Android or IOS
- Flexible power and control options
- Fast installation
- Alexa/Google Home voice control
- Can be set upper/middle/lower limits
PRODUCT DETAILS
| Rated torque: | 1Nm |
| Rated power: | 8W |
| Motor diameter: | 25mm |
| Rated voltage: | DC 7,4V |
| Waterproof: | Ip20 |
| Warranty: | 3 years |
SB10109
Smart roller blinds
Smart roller blinds
⌀35 MOTOR FOR 50MM PIPE
WIFI
- Voice control
- App control
- Opening by timer
- Remote control
- Free installation of the TUYA application on an Android or IOS
- Flexible power and control options
- Fast installation
- Alexa/Google Home voice control
- Can be set upper/middle/lower limits
PRODUCT DETAILS
| Power input: | AC 110-240V 50/60Hz |
| Rated torque: | 1Nm |
| Motor diameter: | ⌀35mm |
| Waterproof: | Ip20 |
| Warranty: | 3 years |

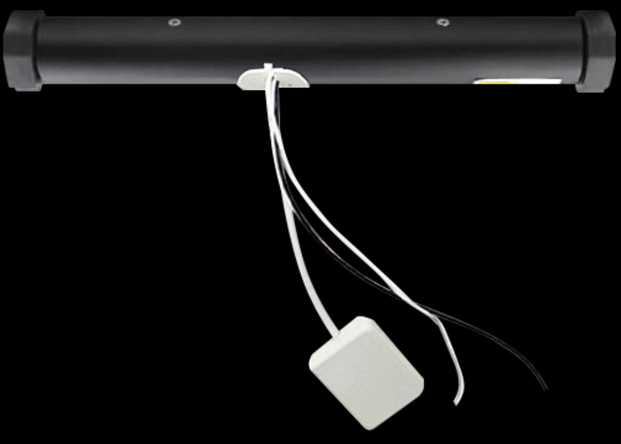

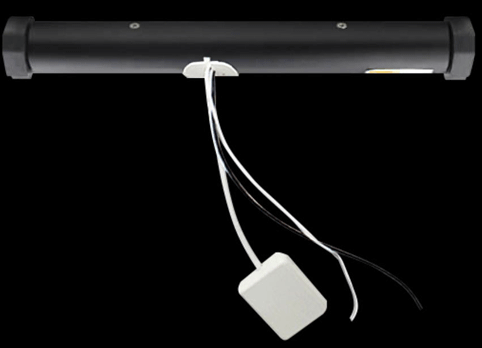

MOTOR FOR 24MM 24MM U TRACK
WIFI
ZIGBEE
- Aluminum blinds
- Honeycomb curtain
- Pleated blinds
- Roman blinds
PRODUCT DETAILS
| Power input: | AC 110-240V 50/60Hz |
| Rated torque: | 1Nm |
| Maximum load (20mm pipe): | 10kg |
| Maximum power: | 12W |
| Noise level: | 32 – 35dB |
| Waterproof: | Ip20 |
| Warranty: | 3 years |
Aluminum blind
Pleated blinds
Honeycomb shade
Roman shade

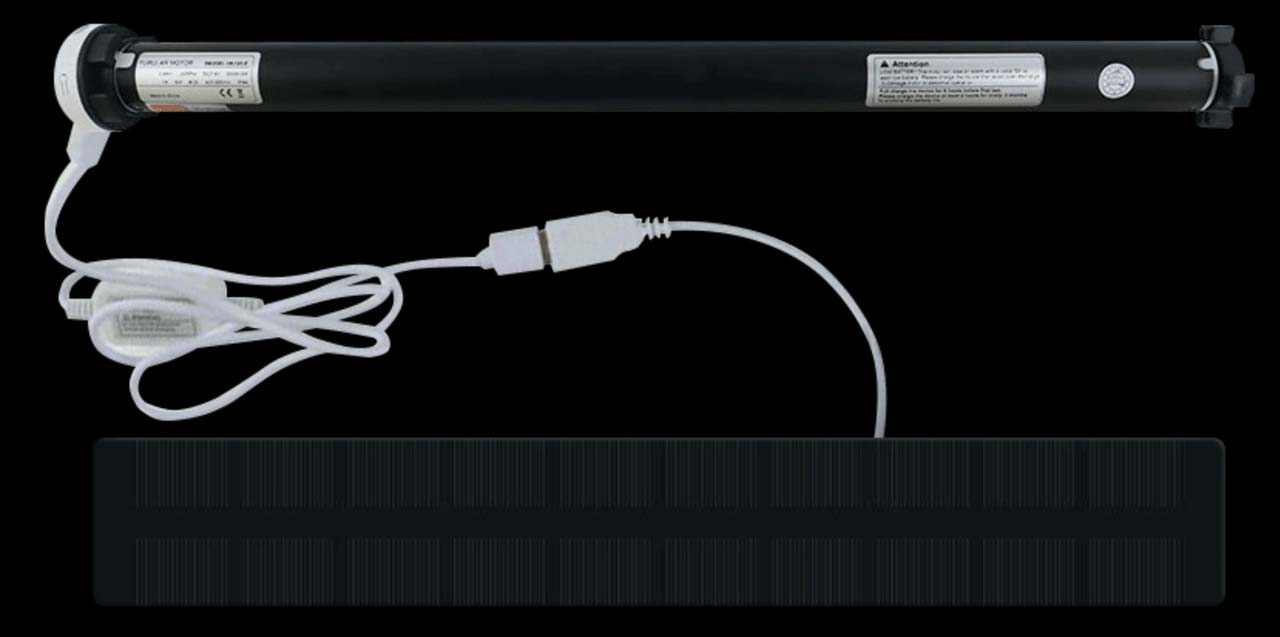

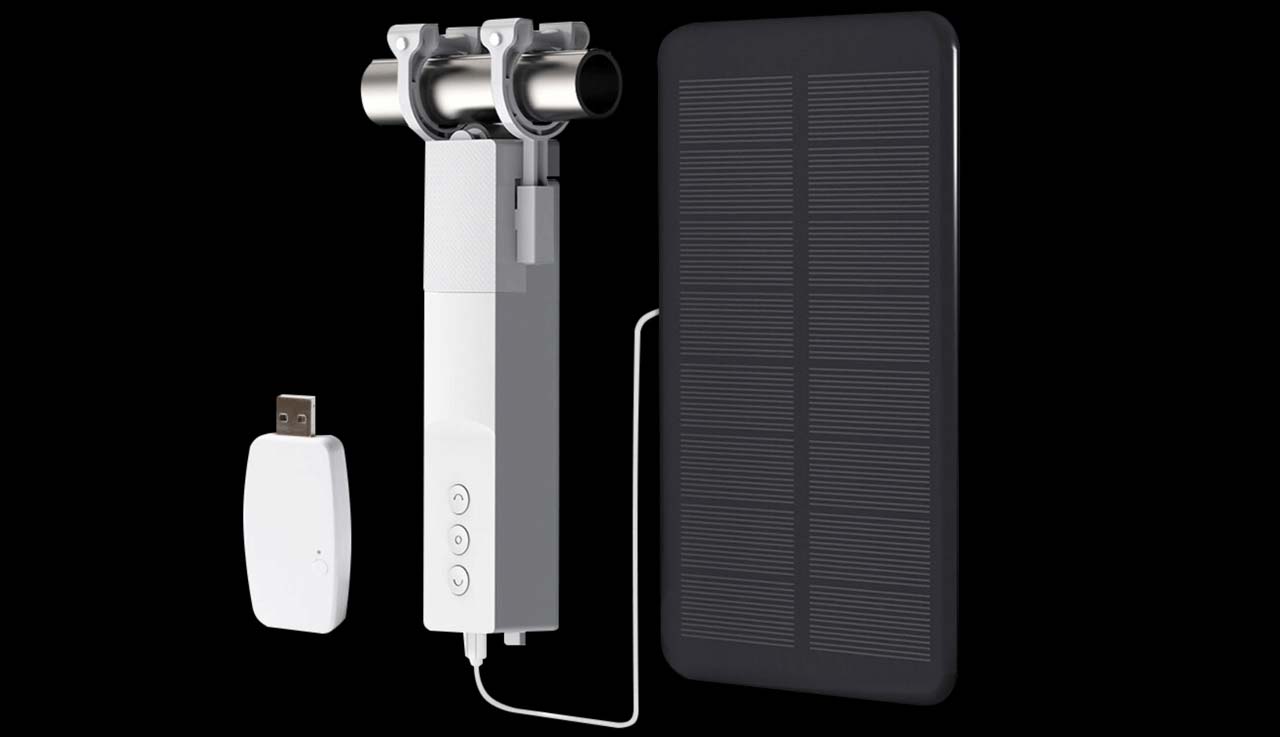

CHARGING FROM SOLAR PANELS
BLUETOOTH
ZIGBEE
- Voice control
- App control
- Opening by timer
- Easy Installation
PRODUCT DETAILS
| Power input: | DC 7,4V |
| Rated power: | 4W |
| Rated torque: | 0,45Nm |
| Waterproof: | Ip20 |
| Operating temperature: | -20℃ – 60℃ |
| Warranty: | 3 years |
SB10111
Smart roller curtain motor
Smart roller curtain motor

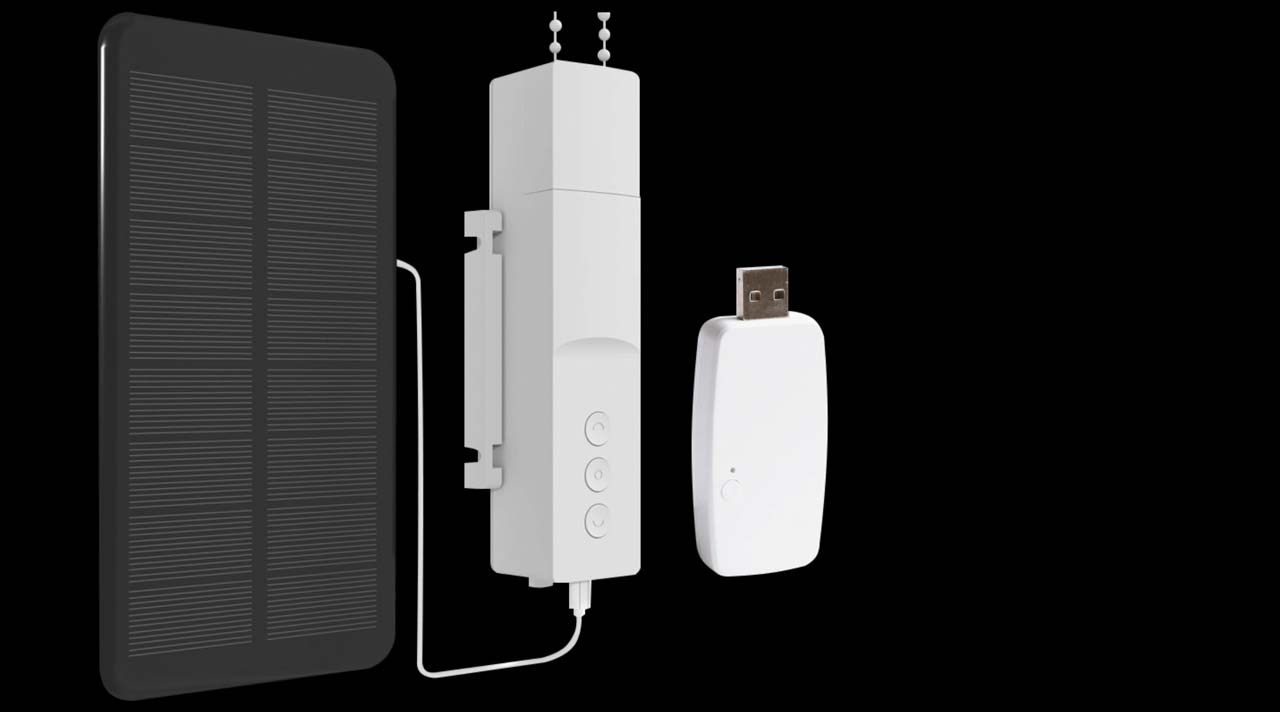

CHARGING FROM SOLAR PANELS
Can be powered by solar energy
BLUETOOTH
ZIGBEE
- Alexa/Google Home
- Voice control
- App control
- Opening by timer
PRODUCT DETAILS
| Power input: | DC 7,4V |
| Rated power: | 4W |
| Rated torque: | 0,45Nm |
| Waterproof: | Ip20 |
| Operating temperature: | -20℃ – 60℃ |
| Warranty: | 3 years |
SB10111
Smart roller curtain motor
Smart roller curtain motor

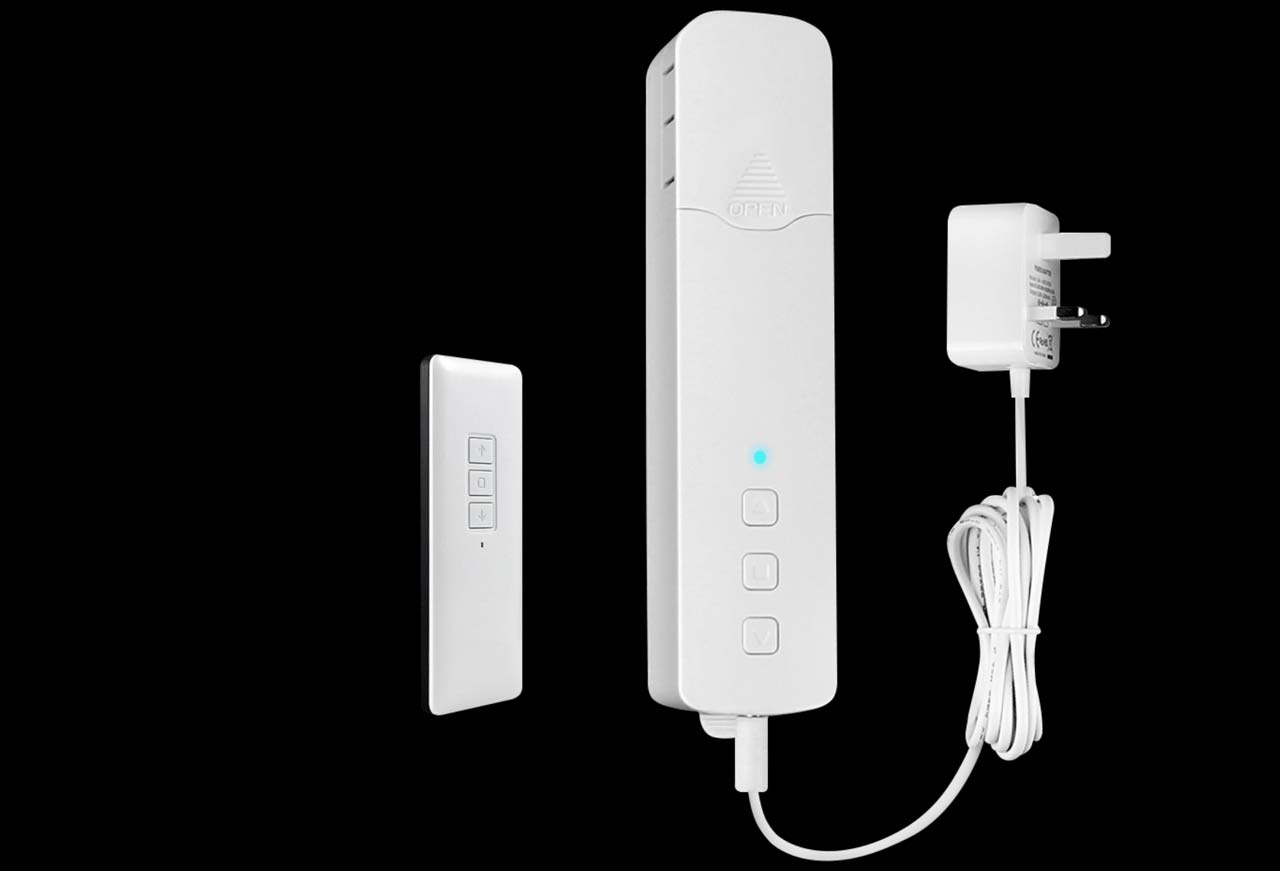

AC POWER
WIFI
- Alexa/Google Home
- Voice control
- App control
- Opening by timer
PRODUCT DETAILS
| Power input: | DC 7,4V |
| Rated power: | 4W |
| Rated torque: | 0,45Nm |
| Waterproof: | Ip20 |
| Operating temperature: | -20℃ – 60℃ |
| Warranty: | 3 years |

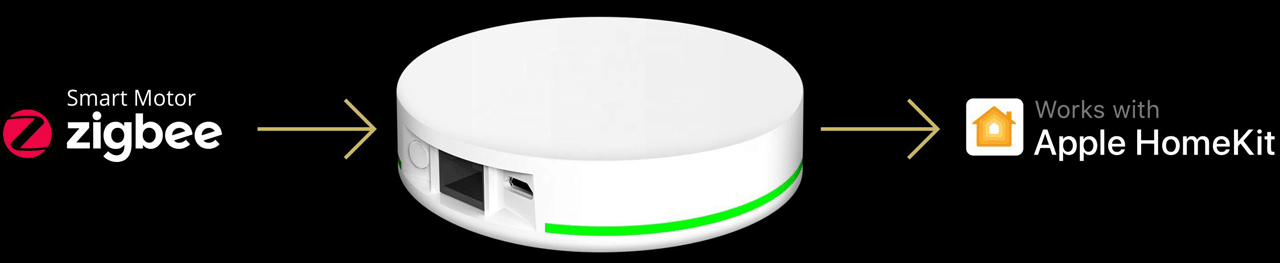

SMART BUTLER SB010095
Zigbee Hub works with Homekit
Zigbee Hub works with Homekit
NEW LINK
This hub supports Apple homekit control for TUYA
standard Zigbee Device.
standard Zigbee Device.
PRODUCT DETAILS
| Product name: | Smart Butler Zigbee Hub works with Homekit |
| Dimensions: | 90×21mm |
| Operating temperature: | -5°C – 50°C |
| Supported systems: | Starts from Android 5.0 or iOS12.0 |
| Model: | SB10101 |
| Power input: | 5V 1A |
| Operating humidity: | 0% - 95%RH |
SUPPORTED DEVICES
| SB10102 | SB10103 | SB10104 | SB10105 | SB10106 |
| SB10107 | SB10108 | SB10109 | SB10110 | SB10111 |
